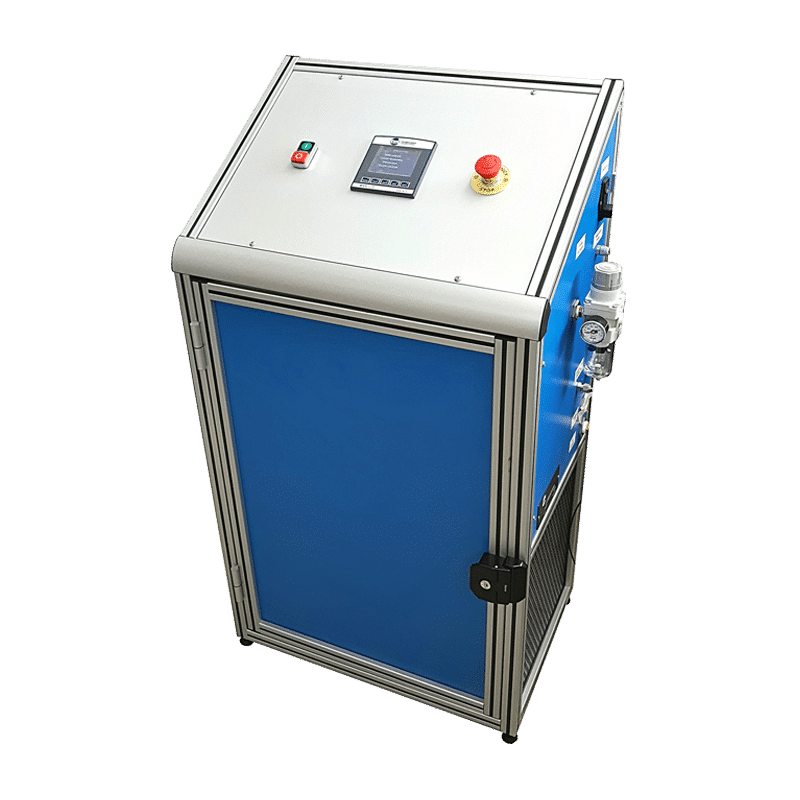

Automatic Oxygen cylinder filling station
The Automatic Oxygen Cylinder Filling station allows MRO and medical workshops to automatically fill fixed or portable oxygen cylinders in accordance with the SAE AIR1059F following to CMM 35-22-01, CMM 35-35-55, CMM 35-35-53, CMM 35-18-35, CMM 35-31-55, CMM 35-30-01 and CMM 35-28-98 or equivalent
- Integration of several bottle P/N with specific filling settings in accordance with SAE AIR1059F standard
- Fast, Automatic and Accurate filling process up to 250bar with temperature compensation
- Numeric measurement chains for easy troubleshooting and calibration (plug and play)
The Automatic Oxygen Cylinder Filling station allows MRO and medical workshops to automatically fill fixed or portable oxygen cylinders in accordance with the SAE AIR1059F following to CMM 35-22-01, CMM 35-35-55, CMM 35-35-53, CMM 35-18-35, CMM 35-31-55, CMM 35-30-01 and CMM 35-28-98 or equivalent.
Pictures of the product
Model
Documents to download
Document's type
Technical specifications
Product category
Oxygen Equipment
Applications
MRO - Maintenance Repair and Overhaul
Features
Integration of several bottle P/N with specific filling settings in accordance with SAE AIR1059F standard
Numeric measurement chains for easy troubleshooting and calibration (plug and play)
Fast, Automatic and Accurate filling process up to 250bar with temperature compensation
Technical Specifications
PLC-controlled bench with automatic filling process, booster management and user-friendly HMI
1 pressure port (0-250bar) for filling with Oxygen on 1 to 6 bottles simultaneously (additional pressure ports are available on option)
External Oxygen booster with buffer bottles mounted on frame (for filling of several bottles)
Oxygen Booster integrated In the test bench
Compatible with CMM 35-22-01, CMM 35-35-55, CMM 35-35-53, CMM 35-18-35, CMM 35-31-55, CMM 35-30-01 and CMM 35-28-98 or equivalent
Digital output pressure measurement chains (0-250bar / 0-3625 PSI)
On option: external Oxygen booster (B018) with buffer bottles mounted on frame (for filling of several bottles)
Non-contact temperature measurement on each bottle and compensation on pressure filling setpoint
1 generation pressure port 0/+1barG with standard sensor
Fast, Automatic and Accurate filling process with configurable setpoint ramps and stabilization levels according to the SAE AIR1059F standard.
