T.E.I
B019

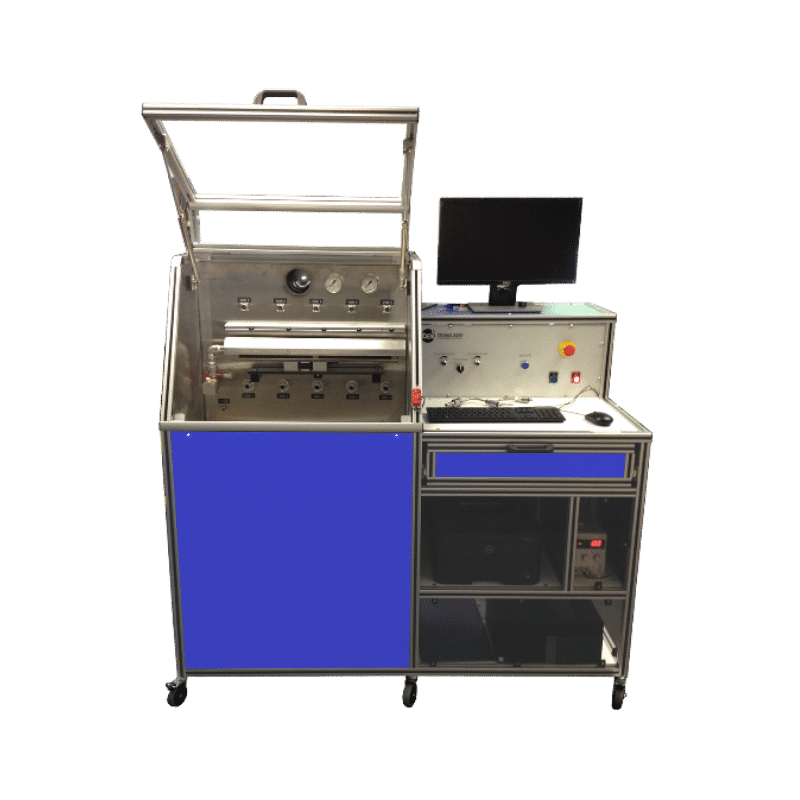

Rain Repellent Solenoid Valve test Bench
This bench is dedicated to OEM and MRO Workshop to carryout test on Rain Repellent Solenoid Valves on windows washer systems for Aircrafts
- Can be supplied with standard compressed air (7/8 bar) and water networks, available in workshops
- 2 test stations, compact and easily integrated
- Complete test solution: proof, leak, flow, electrical power and dielectric tests
- Complete and automatic control of up to 5 solenoid valves simultaneously
This bench is dedicated to OEM and MRO Workshop to carryout test on Rain Repellent Solenoid Valves on windows washer systems for Aircrafts. It consists of a functional test station grouping together the pressure tests (test, cycling, flow, operation) and a station dedicated to dielectric tests
Pictures of the product
Model
Documents to download
Document's type
Technical specifications
Product category
Testing Room
Applications
Production
OEM - Original Equipment Manufacturers
Features
Can be supplied with standard compressed air (7/8 bar) and water networks, available in workshops
Complete and automatic control of up to 5 solenoid valves simultaneously
Complete test solution: proof, leak, flow, electrical power and dielectric tests
2 test stations, compact and easily integrated
Technical Specifications
Results save and automatic edition of test reports at the end of a control cycle
Current measurement: 0-2A DC
Automatic test and measurement of Solenoid Valve flow
Proof pressure generation with air: 0 to 235PSIG
Proof pressure generation with water: 0 to 100PSIG
User-friendly PC application with measurement display and test sequence according to client process
Integrated manual mode
Automatic dielectric test Station with mounting tool for testing up to 5 solenoid valves simultaneously
Keywords
Solenoid Valves Test Bench
Rain repellent valves test
