B021

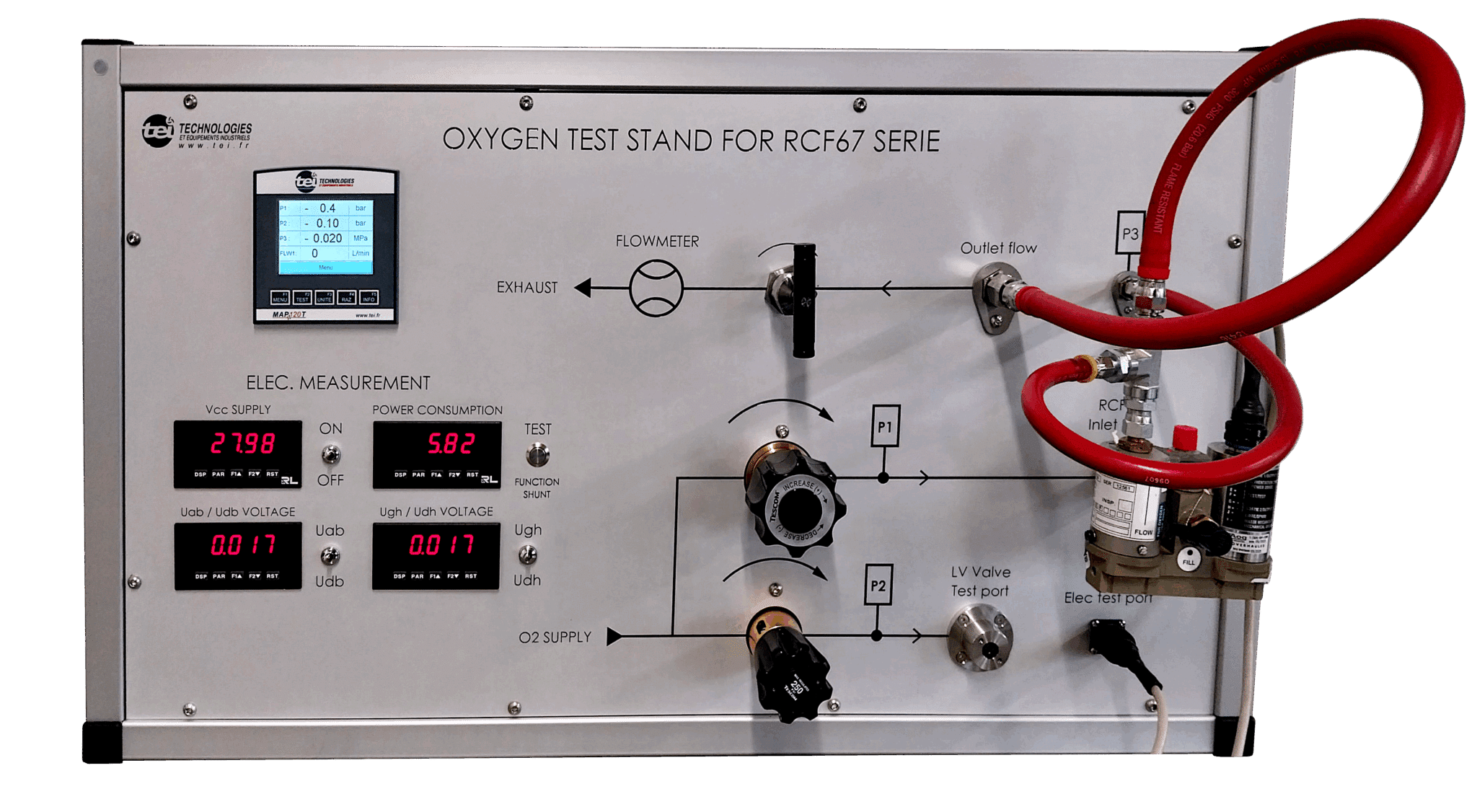

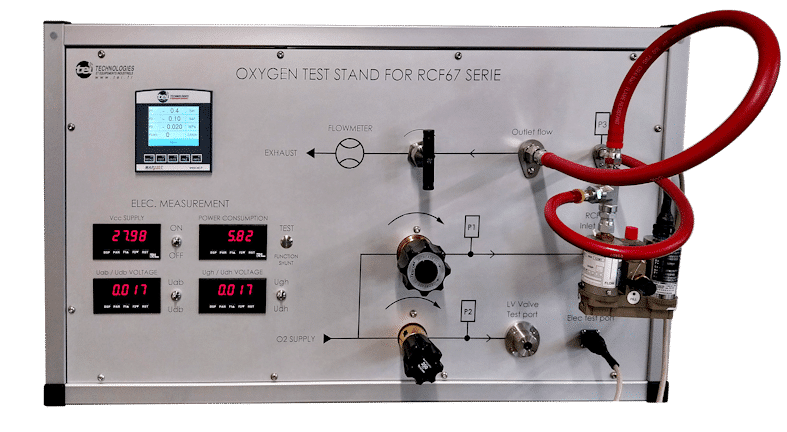

The RCF67 Serie B021 Oxygen Test Bench is designed for MRO maintenance stations looking for a complete test solution for the RCF67 Serie Pressure Regulator Transmitter fitted to aeronautical oxygen cylinders (CMM 35-50-05). It is used to carry out functional tests (Testing and Isolation Default), during which the equipment's pressure resistance and tightness are first checked, along with its performance in terms of flow and outlet pressure under different conditions of use. It has a high-pressure supply circuit with CGA-540 connection (Inlet Port) and an Oulet circuit with flow adjustment. Connections are available on the front panel for quick assembly and connection of the equipment for each type of test. A dedicated test port allows the LP Valve alone to be tested. For tests on the RCF67's built-in pressure transmitter, the bench features an electrical test circuit with +28V power supply, power consumption measurement and transmitter signal display (with configuration toggle for measurement pins). For Bonding Resistance tests, a specific test kit can be supplied with the bench. With these features, the cycle time for a complete test of an RCF67 is less than 30 minutes (including assembly and disassembly of the equipment). Easy to use and space-saving, the RCF67 Oxygen Test Stand can be easily deployed in most MRO workshops.
