T.E.I
B038

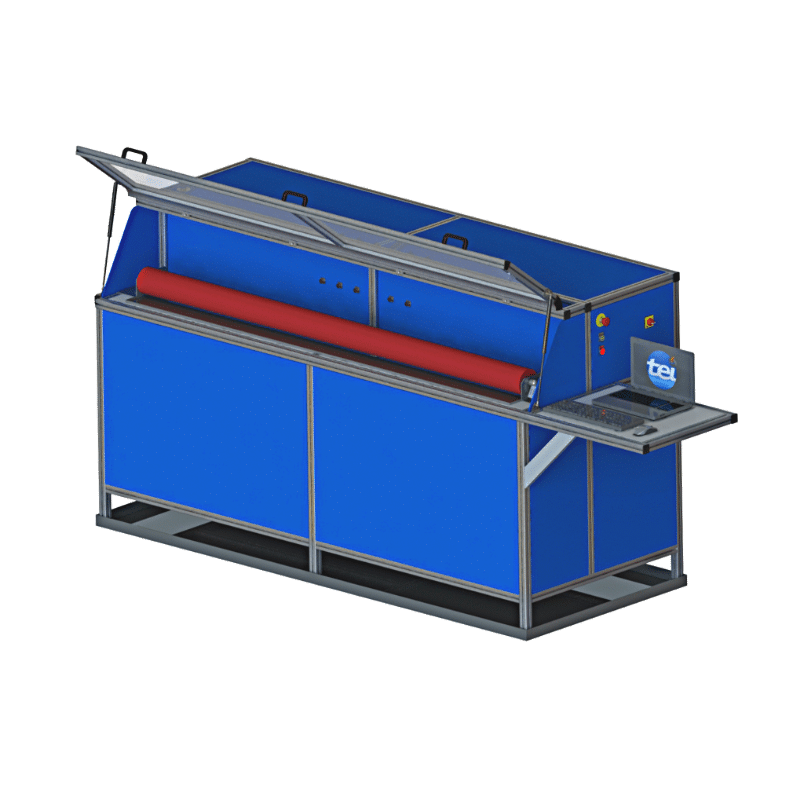

Pressure loss test bench
The pressure loss test Bench is designed for laboratories and test departments wishing to qualify in an automated way the pressure/flow performance of valves or pipes in water and air
- Stable and precise automatic pressure/flow regulation (air and water), ideal for pressure drop measurements
- High-precision digital pressure and flow measurement chains
The pressure loss test Bench is designed for laboratories and test departments wishing to qualify in an automated way the pressure/flow performance of valves or pipes in water and air.
Solutions:
Pictures of the product
Model
Documents to download
Document's type
Technical specifications
Product category
Measurement Test Stand
Applications
R&D Test
Features
Stable and precise automatic pressure/flow regulation (air and water), ideal for pressure drop measurements
High-precision digital pressure and flow measurement chains
Technical Specifications
Water or air pressure regulation (2 separate circuits): from 100mbar to 20bar - tolerance: ± 20mbar
Option: Testing of 3-way valves with generation of 2 separate flow rates on ports 1 and 2 of the equipment
Up to 15 "tooling" pressure transducers equipped with quick couplings in the test chamber to perform pressure measurements at the ports of tested equi
Air circuit - Flow measurement ranges: 0-3; 0-100mL/min; 0-30; 0-100L/min; ± (0.5% of measure + 0.1% FS)
Power supply: 230V 50Hz single phase - 16A
Water circuit - Flow measurement ranges: 0-0.5; 0-20; 0-40L/min; ± 0.1% of actual flow rate
Pneumatic supply: Compressed air / 21 to 25bar
Water circuit: pressure or flow regulation depending on the type of test
Regulation of the temperature of the water circuit: +10 to +40°C / Tolerance: ±0.1°C
