T.E.I
B040
Load and Displacement Test Bench
This Bench is dedicated to tests and process requiring displacement generation with a control on applied load
- Many use: load/displacement characterization,constraint, chocking/setting on equipment,interference fitting etc.
- Displacement generation in tension/compression,with automatic or manual mode
This Bench is dedicated to tests and process requiring displacement generation with a control on applied load. Its software allows to plot andanalyze load and displacement curves.

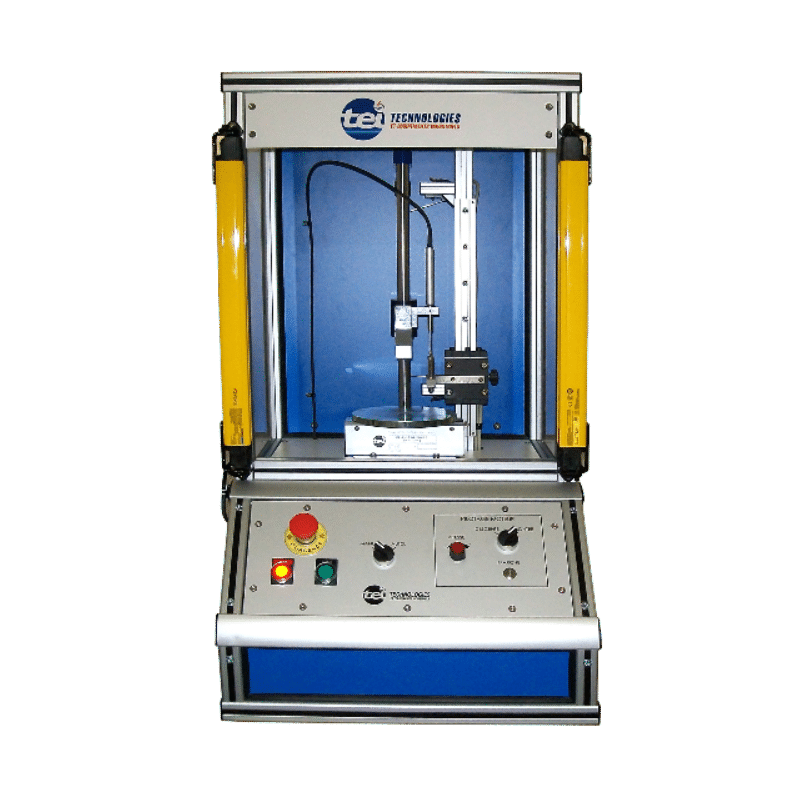

Pictures of the product
Model
Documents to download
Document's type
Technical specifications
Product category
Measurement Test Stand
Applications
R&D Test
Production
Features
Many use: load/displacement characterization,constraint, chocking/setting on equipment,interference fitting etc.
Displacement generation in tension/compression,with automatic or manual mode
Technical Specifications
Adjustable displacement speed , depending to process: 0.1 to 5mm/sec
Use with manual or automatic mode
User-friendly software with measurement display, curve plotting, cursors for curve analysis and registration of final curve.
Adjustable load limitation by software
Load measurement: ± 224.8 lbf / error < 00.2 lbf
Displacement measurement: 0-30mm / error < 1µm with adjustable sensor stop
Keywords
Load / Displacement bench
Tension/compression bench
